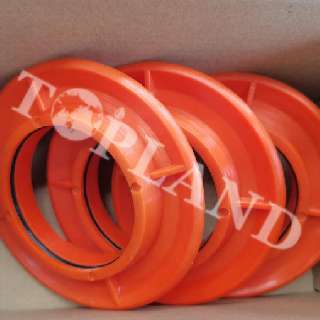

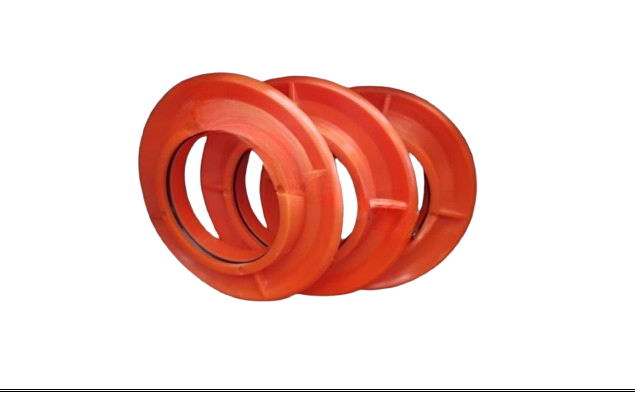

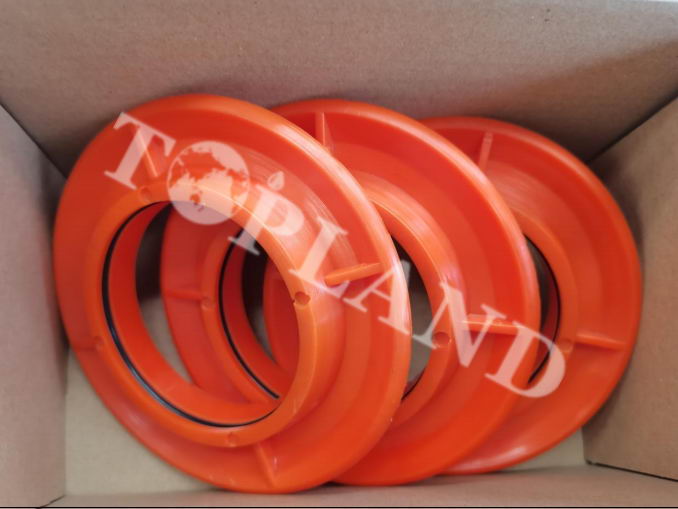

EFLECTOR ASSY (Water Dispenser) PN TS-22210-01A Mission Pump Spare Parts
Mission Pump Spare Parts Description
Each pump utilizes the best materials engineering and processes in the industry. Three key differences from most pump designs include a concentric housing, a wider impeller, and increased recirculation area. Each feature helps reduce wear when handling abrasive liquids.
| P/N | DESCRIPTION |
| TS-20612-02-33 | SHAFT ASSY |
| TS-20943-21 | SLEEVE, SHAFT |
| TS-22210-01A | ADEFLECTOR ASSY(WATER SLINGER) |
| TS-20620-01 | EXCLUSION SEAL, INBOARD BEARING COVER |
| TS-250BIS | BISBEARING, INBOARD & SPACER |
| TS-7496-253 | SEAL, OUTBOARD BEARING HOUSING |
| TS-7496-26 | RING, OUTBOARD BEARING COVER |
| TS-641103353 | KIT, POWER END GASKET |
| TS-20619-02 | OIL SEAL, OUTBOARD BEARING COVER |

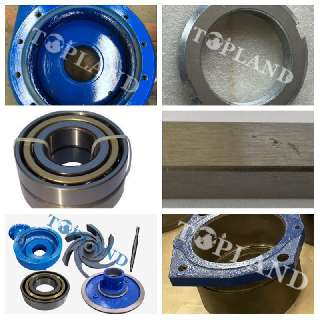

Mission Pump employs the highest quality bearings. The external bearing assembly comprises a pair of angular contact bearings with high thrust load ratings and zero axial clearance.
The heavy-duty internal bearings utilize a double-row ball bearing design, providing high radial load ratings to accommodate the large impeller and demanding operating conditions.
